The CONMED AirSeal® iFS Intelligent Flow System is a clinical insufflation platform that lets surgeons operate at low pressure with confidence. Unlike conventional high-flow insufflation, AirSeal® keeps the pneumoperitoneum stable even during large leaks and heavy suction, so the working space is maintained throughout the procedure.

At its core is a proprietary valveless cannula that forms a responsive gas barrier, keeping CO₂ flow and pressure consistent without compromising surgical exposure. Published studies associate low-pressure surgery with AirSeal® with less postoperative pain, better intraoperative respiratory parameters, and shorter recovery — supporting ERAS protocols across laparoscopic and robotic-assisted procedures in urology, gynecology, colorectal, and general surgery.

Key features

• Stable pneumoperitoneum at low pressure, even with large leaks and heavy suction
• Patented valveless cannula with a responsive CO₂ gas barrier
• Significantly reduced pressure variability compared to conventional insufflation
• Integrated smoke evacuation for continuous visibility
• Three operating modes: AirSeal® Mode, Smoke Evacuation Mode, and Standard Insufflation Mode
• Compatible with robotic-assisted surgery, including da Vinci 8mm cannulas
• Clinical data linked to reduced postoperative pain, PACU time, and length of stay

System
AirSeal® iFS Intelligent Flow System (120V): AS-IFS1
AirSeal® iFS Intelligent Flow System (230V): AS-IFS2
AirSeal® Cart for use with iFS: AS-ICart

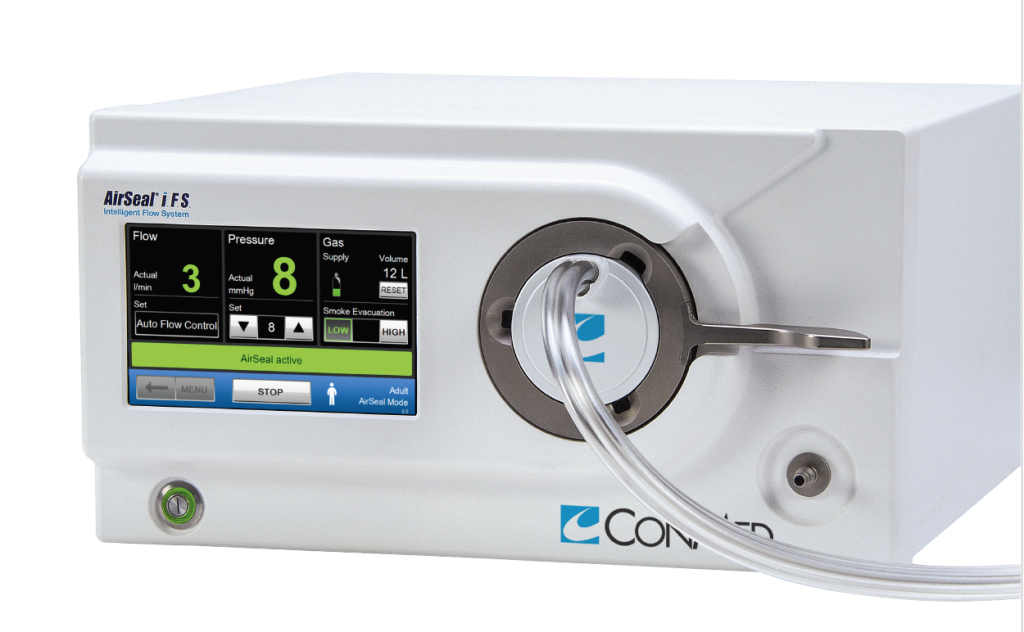

Display: Touchscreen showing actual/set flow (l/min), actual/set pressure (mmHg), gas supply and volume, smoke evacuation level
Flow control: Auto Flow Control with selectable flow settings
Smoke evacuation: Low / High settings
Patient modes: Adult mode selectable on screen

Working principle
Cannula design: Proprietary valveless access port creating a responsive gas barrier
Gas channels: CO₂ insufflation, smoke evacuation, and filtered air
Pressure control: Maintains set pressure with markedly lower variability than conventional insufflation

Operating modes & tube sets
AirSeal® Mode: Tri-Lumen Filtered Tube Set (ASM-EVAC1, 6/box)
AirSeal® Robotic Solution: Bifurcated Filtered Tube Set (ASM-EVAC1-BI, 6/box)
Smoke Evacuation Mode: Bifurcated Smoke Evac Filtered Tube Set (SEM-EVAC, 6/box)
Standard Insufflation Mode: Single Lumen Filtered Tube Set (SIM-TUB, 10/box)

Access ports
5mm Access Port, Low Profile Obturator, bladeless optical tip: 75 / 100 / 120mm (IAS5-75LP, IAS5-100LP, IAS5-120LP)
5mm Smooth Access Port, blunt tip: 150mm (IASB5-150)
8mm Access Port, Low Profile Obturator, bladeless optical tip: 100 / 120mm (IAS8-100LP, IAS8-120LP)
12mm Access Port and Obturator, blunt tip: 100 / 120mm (IASB12-100, IASB12-120)
12mm Access Port, Palm Grip Obturator, bladeless optical tip: 100 / 120 / 150mm (IAS12-100LPI, IAS12-120LPI, IAS12-150LPI)
8mm Cannula Cap and Obturator for da Vinci 8mm cannulas: standard / long (IAS8-dV, IAS8-dVL)

Patient benefits
Respiratory: Improved intraoperative respiratory parameters
Pain: Reduced postoperative pain scores in multiple published studies
Recovery: Lower postoperative ileus rates, shorter PACU time and length of stay
Renal surgery: Reduced warm ischemia time in robotic partial nephrectomy

Surgical efficiency
Workspace: Stable pneumoperitoneum during leaks and suction
Visibility: Continuous smoke evacuation
Time: Reduced procedure time reported in clinical studies
Hospital impact: Fewer 30-day ER visits and readmissions, faster patient turnover
