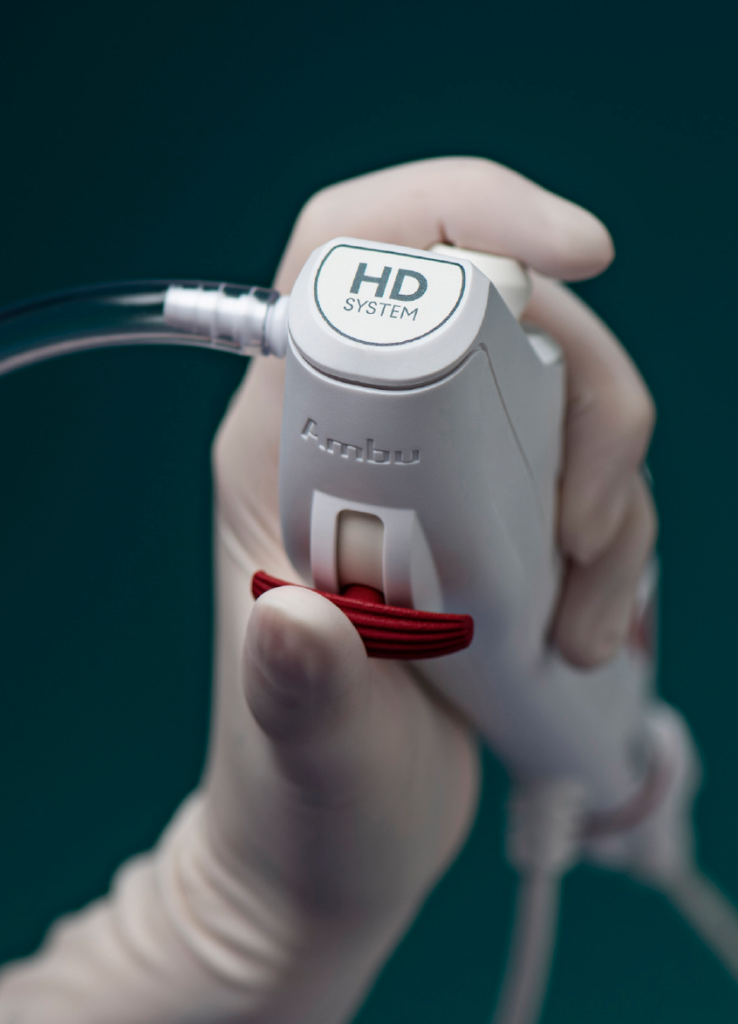

The Ambu® aScope™ 5 Broncho is a family of sterile, single-use flexible bronchoscopes. It brings the image quality and handling of a bronchoscopy suite together with the sterility and constant availability of the single-use concept. Four sizes cover diagnostic, therapeutic, BAL, and peripheral procedures, so the right scope is always ready and nothing waits on reprocessing or repair.

The HD 5.0/2.2 and HD 5.6/2.8 models give a bright, clear image and handle well, even with endotherapy and high-frequency instruments in place. The 4.2/2.2 puts a regular-sized working channel into a thin scope for peripheral work. The ultrathin 2.7/1.2 is made for smaller anatomies. For BAL, the integrated aScope™ 5 Broncho Sampler Set provides closed-loop specimen collection with a 60 ml container.

Key features

• Sterile single-use design with no risk of patient-to-patient cross-contamination
• Always available, with no reprocessing or repair bottlenecks
• Consistent performance and no wear and tear on bending or imaging
• Four sizes for diagnostic, therapeutic, BAL, and peripheral bronchoscopy
• HD imaging on the 5.0/2.2 and 5.6/2.8 models, compatible with high-frequency tools
• Thin 4.2/2.2 scope with a regular-sized working channel and 210°/210° bending
• Integrated Sampler Set for closed-loop BAL sampling with a 60 ml container

Available models (outer diameter / working channel, mm)
aScope™ 5 Broncho HD 5.6/2.8: Diagnostic and therapeutic procedures (622001000, 5/box)
aScope™ 5 Broncho HD 5.0/2.2: Diagnostic and therapeutic procedures (621001000, 5/box)
aScope™ 5 Broncho 4.2/2.2: Peripheral bronchoscopy (620001000, 5/box)
aScope™ 5 Broncho 2.7/1.2: Smaller anatomies (624001000, 5/box)

aScope™ 5 Broncho 4.2/2.2
Bending angle: 210°/210° for excellent manoeuvrability
Working channel: Regular-sized 2.2 mm channel in a thin scope
Instruments: Compatible with commonly used endotherapy instruments and active tools*

aScope™ 5 Broncho 2.7/1.2
Field of view: 120°
Depth of field: 3–100 mm
ET tube compatibility: Down to 3.5 mm
Instruments: Not compatible with high-frequency tools*

aScope™ 5 Broncho Sampler Set
HD 5.6/2.8 Sampler Set: 622002000 (5/box)
HD 5.0/2.2 Sampler Set: 621002000 (5/box)
4.2/2.2 Sampler Set: 620002000 (5/box)
Sample protection: Closed-loop system that reduces the contamination and sample loss risks seen with Lukens traps
Safety: Fewer exposure points, protecting staff from airway secretions
Operation: Switch between suction and sampling with a knob turn, no tubing change, no assistant needed
Set-up: Sterile from the package and clicks directly onto the endoscope
Replacement container: aScope™ BronchoSampler 60 SC, 60 ml (480 500 000, 10/box)

Displaying and processing units
Ambu® aBox™ 2: 505001000**
Ambu® aView™ 2 Advance: 405011000**

Carts
Ambu® aCart™ Compact KU: 9.713.800
Ambu® aCart™ Compact Vario Mount HA: 3.000.991

Clinical benefits
Sterility: No patient-to-patient contamination risk
Availability: A scope ready for every case, with no reprocessing downtime
Flexibility: Four sizes covering the full range of bronchoscopy procedures

* aScope™ 5 Broncho 2.7/1.2 and 4.2/2.2 are not compatible with high-frequency tools.
** Item code differs by region.
