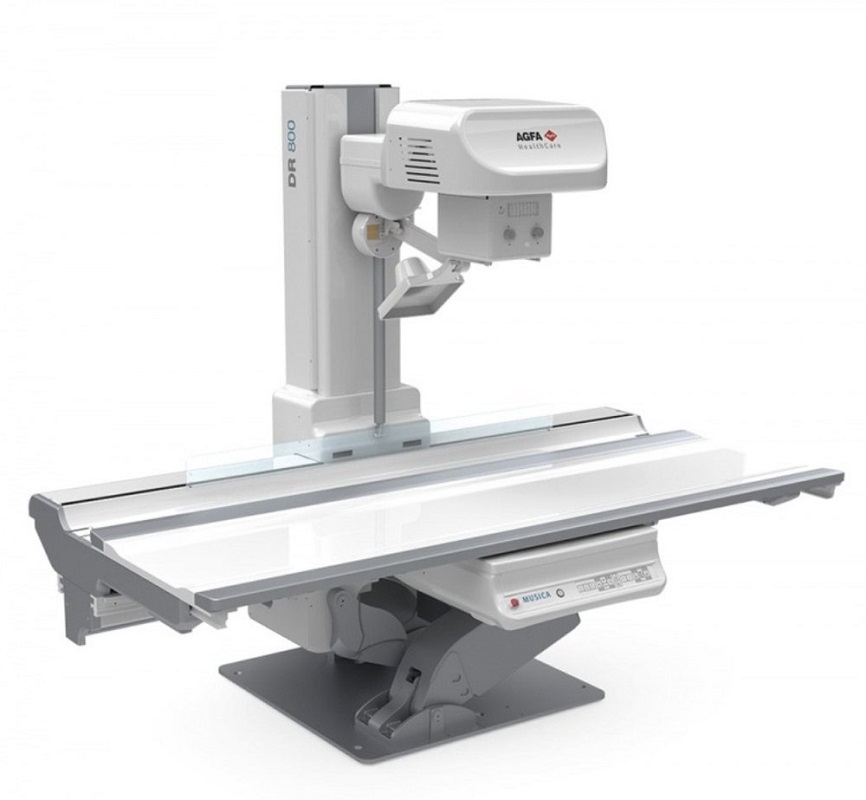

The Agfa DR 800 is a fully integrated digital imaging multitool that optimizes workflow and investment by combining general radiography, fluoroscopy, tomosynthesis and advanced clinical applications in a single room. One investment covers a broad range of exams, removing the need for additional specialty rooms.

Powerful Dynamic MUSICA® image processing assures superb image quality at the lowest possible dose, while remote control, in-room control, auto-positioning, a 180 cm Source Imaging Distance (SID) and radiation-free video positioning enhance patient and operator satisfaction, comfort and safety. Designed in co-operation with leading healthcare providers, the DR 800 was built to meet demanding clinical requirements for optimal operator convenience and the best patient care.

Key features

• Fully integrated digital imaging for radiography, fluoroscopy, tomosynthesis and DSA/roadmapping
• Dynamic MUSICA® image processing for radiography and dynamic (fluoroscopy) imaging
• Remote control and in-room control capability with single-touch, auto-positioning workflow
• VarioDrive one-button auto positioning and Raysense auto-switching anti-scatter grid
• EasyStitch automatic Full Leg/Full Spine (FLFS) stitching, standard
• Smart LiveVision radiation-free video positioning for patient safety
• SmartRotate (optional) presents every image ready for viewing, directly and automatically
• Robust weight capability for patient loads up to 320 kg
• Optional in-room Personal Protection Equipment, built like modular blocks

Applications
Modalities: General radiography, fluoroscopy, digital tomosynthesis, Digital Subtraction Angiography (DSA) and roadmapping
Specialty exams: Port-a-cath, phlebography, PTA, thrombolysis control, cystograms, barium swallows, hysterosalpingograms, venograms, intravenous pyelograms, ERCP’s, esophagrams, arthrograms, Trendelenburg exams, full leg/full spine, lumbar punctures, general radiography

Fluoroscopy
Acquisition rate: Up to 40 frames per second
Positioning: Chest imaging at the standard 180 cm SID without additional equipment

Digital tomosynthesis
Capability: High-resolution, limited-angle tomography with very fast, multi-slice image reconstruction

Image processing
Software: Dynamic MUSICA® for both Radiography and Dynamic (Fluoroscopy) images
Enhancements: Enhanced noise suppression, superb brightness and density stabilization for dynamic imaging studies

SmartXR technologies

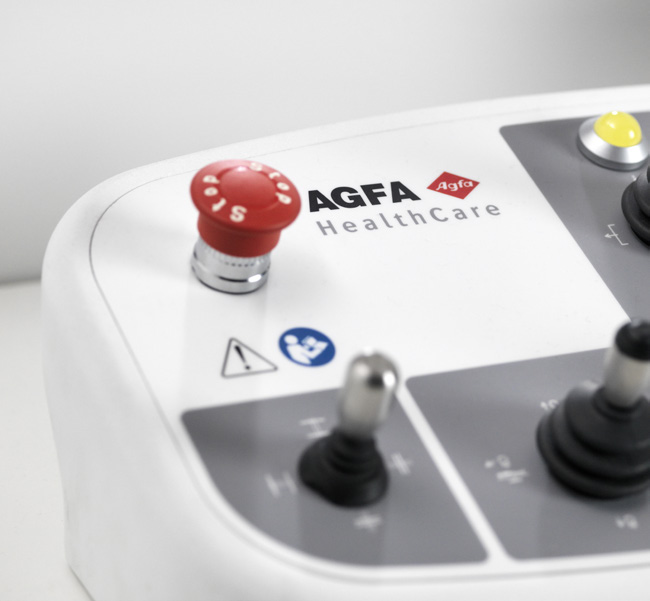

VarioDrive: Smooth, swift auto-positioning for manual and automated procedures

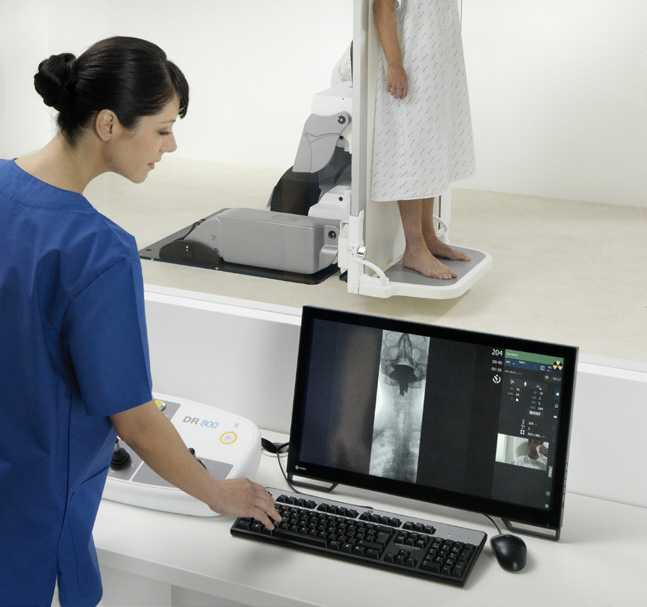

EasyStitch: Seamless automatic stitching for horizontal and vertical Full Leg/Full Spine (FLFS) imaging, single focus, distortion-free, acquisition of up to four images, extensive orthopedic tools

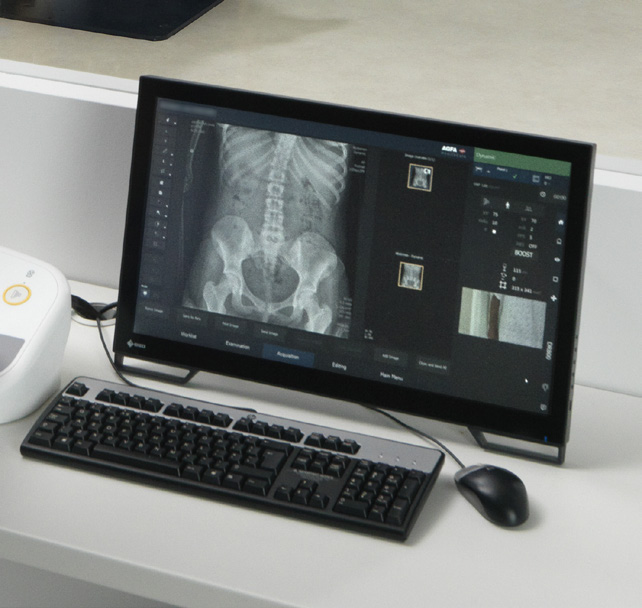

LiveVision: First-person camera view of the patient for radiation-free remote positioning
SmartRotate: Optional; Deep Neural Net image content recognition, automatically presents images ready for viewing

Positioning and table
Weight capacity: Up to 320 kg
Patient access: Clear access to a 120 cm section of the table for effortless transfer from stretcher or bed
Table tilt: +90°/-90° for standing exams and optimal positioning
Entry height: Adjustable and low entry height
Rotation: Tube and table rotation for on- and off-table weight-bearing studies

Extremities
Tube column: Motorized angulation combined with manual tube rotation for end-to-end table-top coverage

Pediatric imaging
Dose control: On-board MUSICA®, pulsed fluoroscopy, high power generator for short exposure times, automated extra filtration and automated anti-scatter grids
Dose measurement: DAP meter and exposure index for accurate dose measurement and recording

Room flexibility
Configurations: Genrad and fluoroscopy, including stretcher, wheelchair and cross-table exposures

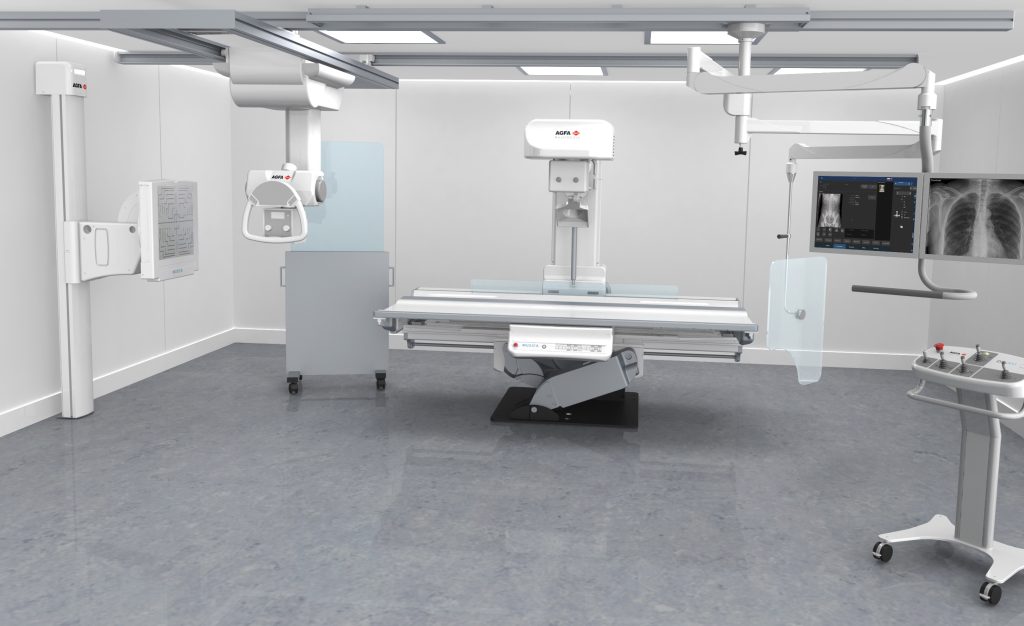

Extended options: Combinable with an overhead ceiling tube and/or wallstand for cross-table and off-table work, and for patients who cannot be moved from wheelchairs or stretchers
Protection: Optional in-room Personal Protection Equipment, tailored to individual requirements

Digital Subtraction Angiography (DSA) / Roadmapping
Function: Real-time subtraction and masking for guidance in the positioning and placement of catheters, stents and balloons

Dose management
Meter: Integrated Dose Area Product (DAP) meter for automatic dose reporting
Detectors: Cesium Iodide (CsI) detectors for optimal image quality with lower radiation dose
Remote positioning: Smart LiveVision for accurate, radiation dose-free positioning

Upgrade path
Note: Room can be augmented with one or multiple MUSICA® Workstation Packages across four categories — Image Quality, Productivity, Patient Care and Data Protection — including Advanced and Expert packages
